Installation

Performance Test Harness

Useful Links

A lot of info cribbed from here

Pre-Reqs

Docker
jq
bc

Installing pre-requisite packages

Red Hat/CentOS
Ubuntu/Debian

sudo dnf -y install jq bc

sudo apt-get -y update
sudo apt-get -y install jq bc

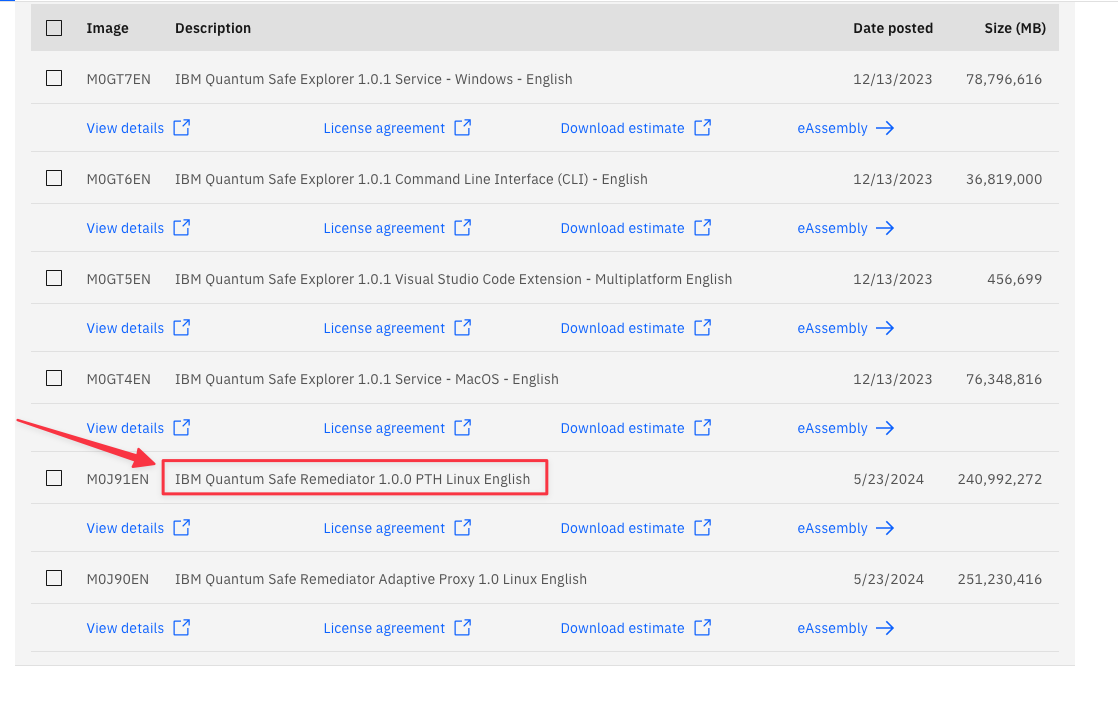

Download the Performance Test Pack from IBM Passport Advantage:

The file downloaded will likely be named IQSR_1.0_Linux_EN.zip. Extract the file.

unzip ~/Downloads/IQSR_1.0_Linux_EN.zip
Archive:  /Users/kramerro/Downloads/IQSR_1.0_Linux_EN.zip
  inflating: M0J91EN/pqc-performance-test_1.0.0.tar

Upload the resultant pqc-performance-test_1.0.0.tar to your docker host.

On your docker host

mkdir -p ~/perftest
tar -xf pqc-performance-test_1.0.0.tar -C ~/perftest/

Change over to the newly extracted directory

cd ~/perftest/pqc-performance-test/test_utils/build_images/

Install the Performance Test Harness

IBM Docs

A lot of this stuff is take verbatim from here:

https://www.ibm.com/docs/en/quantum-safe/quantum-safe-remediator/1.0.x?topic=harness-installing-performance-test

Building the images

Execute the build_images.sh script and select 1 when prompted for the License Agreement.

Should show the images available now for Docker

docker images

REPOSITORY                                          TAG          IMAGE ID       CREATED         SIZE
adaptive-proxy                                      ubi-9.3      99c3cd5ad80f   2 months ago    277MB
adaptive-proxy                                      qscopenssl   6609ea524cdf   2 months ago    282MB
localhost:5000/qsc-h2load-provider-22.04.2-1.1.1t   1.0          5a856162a800   8 months ago    427MB
localhost:5000/qsc-curl-provider-9.2.0-1.1.1t       1.0          429552679bba   8 months ago    70.3MB
localhost:5000/qsc-openssl-provider-9.2.0-1.1.1t    1.0          8b69ff2c49da   8 months ago    77MB

Configuring the build images

Note

This build config needs to happen for every host ip you want to check. So if you have multiple addresses, add them to the space delimited list below.

Execute the build_config.sh script. We are going to use our test vm that is running our test site for the adaptive proxy. Since this is running on IBM Fyre, we have two IP addresses available. We’re going to point to both.

Breaking down the below requirements:

TARGET_FQDN_LIST - Should be a space delimited list of ip addresses of the target hosts
TARGET_IP_LIST - This should also be the same space delimited list of ips from above
TESTFQDN - This should be the same ip as the target host

For our test, we will use the ip of our docker host

./build_config.sh

Enter the target FQDN list seperated by space (TARGET_FQDN_LIST): 9.46.72.93
Enter the target IP list seperated by space (TARGET_IP_LIST): 9.46.72.93
Enter the test FQDN (TESTFQDN): 9.46.72.93

The build will take a while.

After awhile you should see

Performance test server build completed successfully.
Launching performance test server ...
Launching localhost:5000/qsc-perf-server-ubuntu:provider.
Performance test server container started RC=0, container id 318e77d157114d84915654f86cc8c3a225c689e9983bb9d38fbc6b5cbdefc22d.
Building PQC client container ...
Building PQC client container ...

When all is done, you should see the running test harness server container running:

docker ps -a

CONTAINER ID   IMAGE                                            COMMAND                  CREATED          STATUS                    PORTS                                                                                                  NAMES
cae3f96543e0   localhost:5000/qsc-perf-server-ubuntu:provider   "/bin/bash /opt/ngin…"   29 seconds ago   Up 5 seconds              0.0.0.0:9100-9563->9100-9563/tcp, 0.0.0.0:9080->80/tcp, 0.0.0.0:9043->443/tcp                          qsc-perf-server
